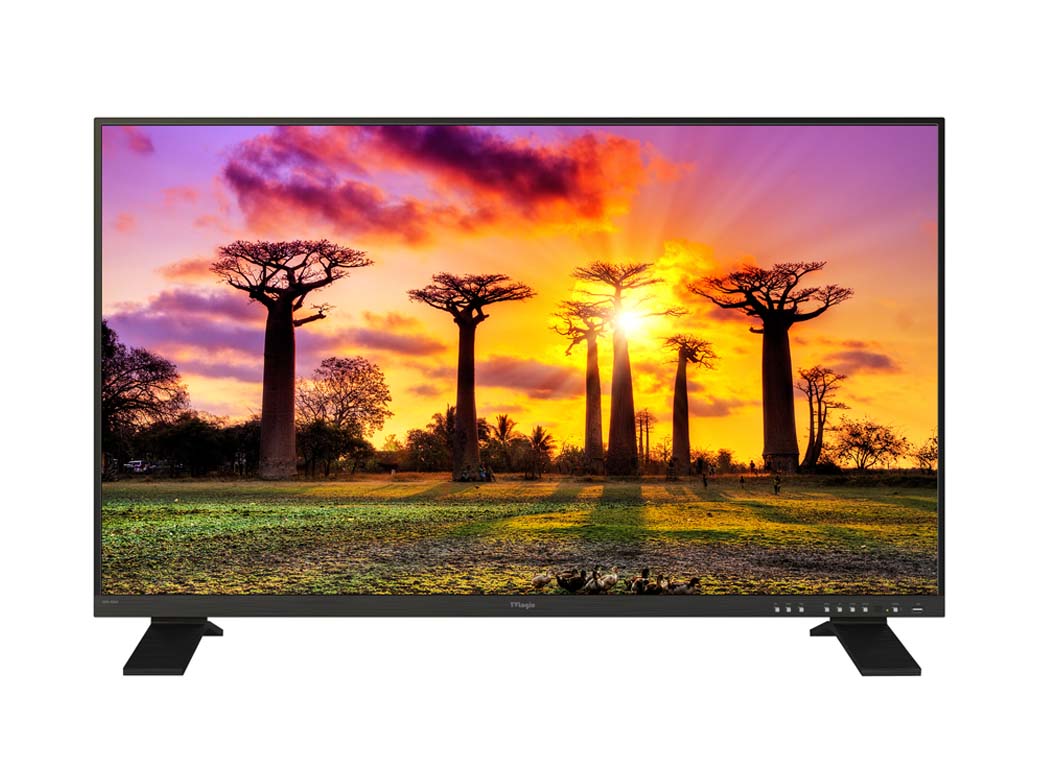

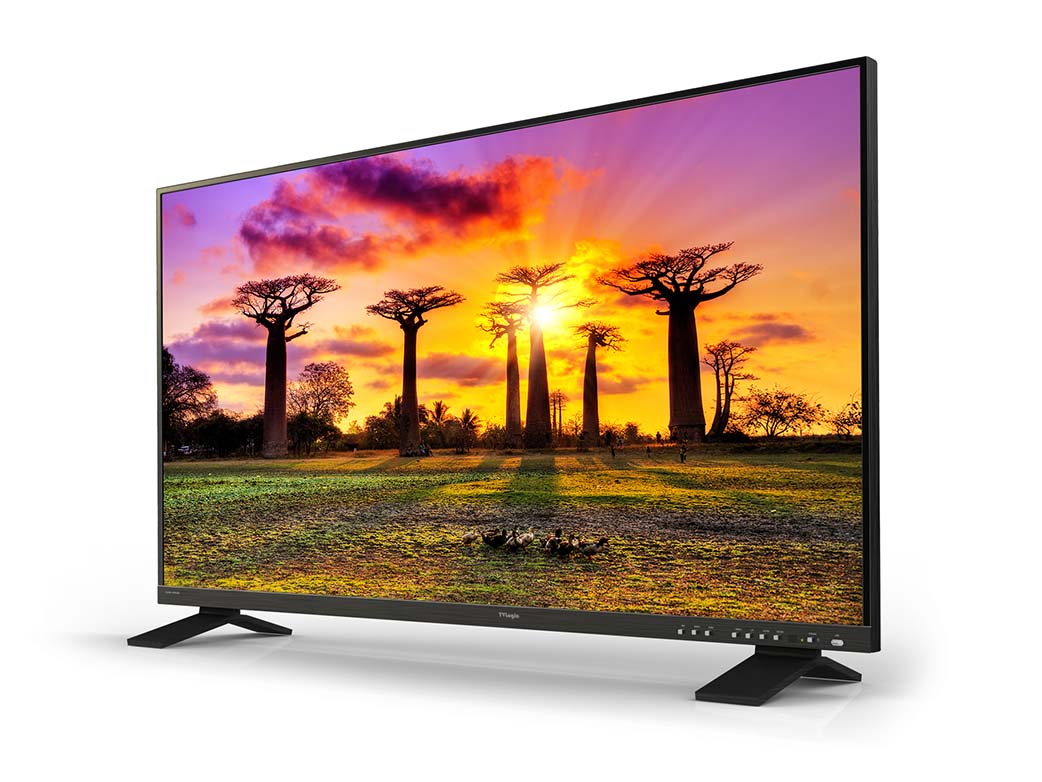

LUM-550M2는 55인치 UHD/4K 모니터로 트루 10 비트 컬러와 HDR 에뮬레이션 기능을 지원합니다. 또한 Waveform/Vectorscope, CC-608, 708 등의 다양한 전문가용 기능을 지원, 3G/6G/12G-SDI 입력 (2x3G-SDI & 2x12G-SDI)과 HDMI 2.0 입력을 갖추었습니다.
Display Spec.
| Size | 55" |
| Resolution | 3840 X 2160 (16:9) |
| Pixe Pitch | 0.315mm |
| Color Depth | 1.07B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 500cd/m2 |
| Contrast Ratio | 1,100:1 |
| Display Area | 1209.6(H) x 680.40(V) mm |

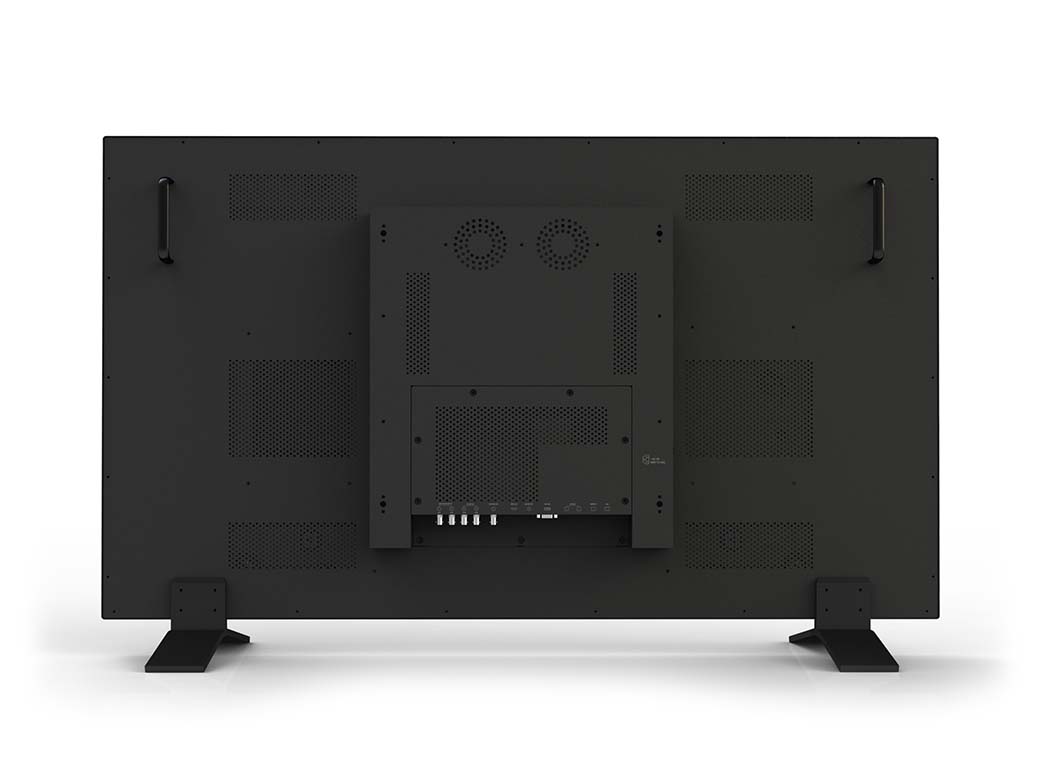

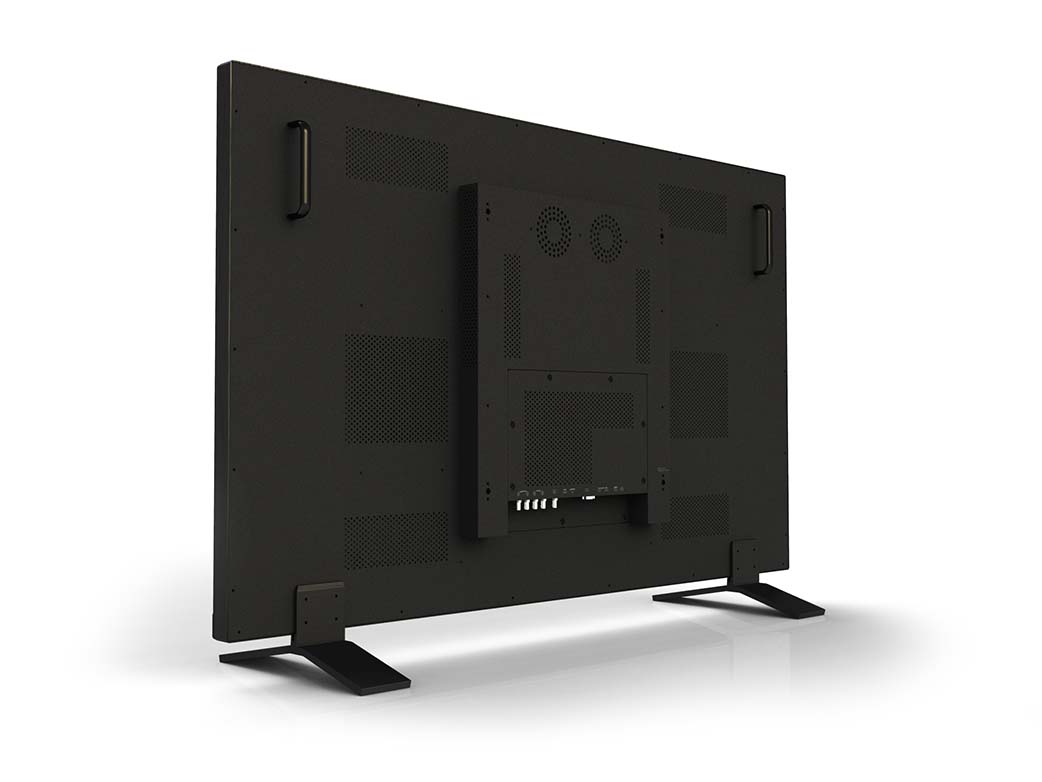

Input
| 4 X BNC | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
| 1 X HDMI | HDMI Input |
Output
| 4 X BNC | HD SDI A/B/C/D Channel Output |
Audio
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
FPGA Functions
| , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, Key Lock, Luma(Y') Zone Check, Marker, Time Code Display, Waveform/Vector, Camera Lut. |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708 |
Calibration
| TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma |
Other Functions
| REMOTE | GPI (RJ45) |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
| Conversion | HDMI-to-SDI, SDI-to-SDI, |
Options
| Carring Case, |
