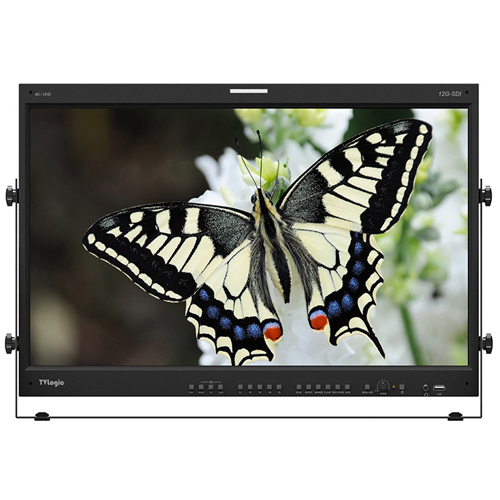

LUM-240G는 24" 12G-SDI를 지원하는 4K(3840x2160) 모니터 입니다. LUM-240G는 다양한 12G/ 3G/ HD-SDI와 HDMI 2.0등 비디오 포멧을
지원합니다. 또한 LUM-240G는 3D LUT 및 DCI 같은 광색역대를 자랑합니다.
Display Spec.
| Size | 23.8" |
| Resolution | 3840 x 2160 (16 : 9) |
| Pixe Pitch | 0.137mm |
| Color Depth | 1.07B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 350cd/m2 |
| Contrast Ratio | 1000:1 |
| Display Area | 527(H) x 296(V) mm |
Input

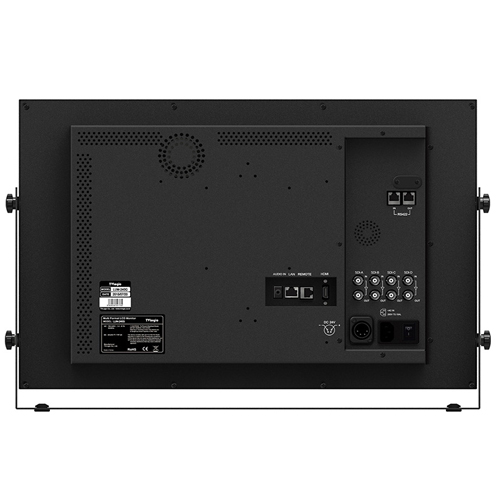

| 4 X BNC | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
| 1 X HDMI | HDMI Input (HDMI 2.0) |
Output
| 4 X BNC | 12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out) |
Audio
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
FPGA Functions
| , Blue Only, H/V Delay, Marker, Mono |
Closed Caption
Calibration
| TVLogic Color Calibration Utility |
Other Functions
| REMOTE | TVLogic’s specification | ||
| USB | AUTO Calibration | Firmware update by USB cable | Firmware update by USB memory stick |
| Ethernet | |||
| Conversion | SDI-to-SDI, |
Options
| Carring Case, Gold Mount, Rack Mount Kit(Single), V-Mount |
