RKM-270A는 새로운 2 x 7" LCD 스크린을 가진 모니터 입니다. 이 모델은 광시야각, 1024x600의 해상도를
가졌고 대부분의 스펙이 LVM-074W와 동일합니다.
Display Spec.
| Size | 7" |
| Resolution | 1024 X 600 (16 : 9) |
| Pixe Pitch | 0.15mm |
| Color Depth | 16.7M |
| Viewing Angle | 170°(H) / 170°(V) |
| Luminance | 400cd/m2 |
| Contrast Ratio | 800:1 |
| Display Area | 154(H) x 90(V) mm |
Input
| 1 X BNC | Analog Input (Composite) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
Output
| 1 X BNC | 3G-SDI Out |
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
FPGA Functions
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, Various Scan Modes, Waveform/Vector, Zoom |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708 |
Calibration
Other Functions
| USB | Firmware update by USB cable | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support | |
| Conversion | SDI-to-SDI, |
Options

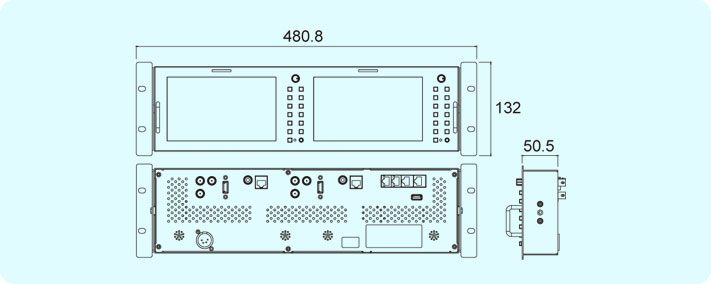

Dimension
- Main Body : 480.8 x 132 x 50.5 (mm) / 18.92 x 5.19 x 1.98 (inch)
- Weight : TBD
